Purpose

This guide shows how to configure a Fortinet Fortigate with FortiOS v5.6 or above.

Please note that the images contained in this article may contain outdated configuration data. Therefore, please check the data contained in the article "Parameters for the Solution" at the bottom of the page, as they are certainly up to date.

Prerequisites

The configuration procedure has been performed and tested on FortiNet FortiWiFi 60D Access Controller running firmware FGT_60D-v5-build1117 and Access Point FAP-221B running firmware FAP_221B-v5-build0354.

FortiWiFi and FortiGate configuration are the same.

This guide will apply to the Access Controllers, Access Points and firmware version mentioned above. Later firmware versions should also work.
Other configurations have not been tested yet and currently, we don’t know if they're supported by Cloud4Wi or not.

Before integrating the controller with Cloud4Wi, please make sure that the FortiGate is connected to the Internet and reachable on the network.

Logging to the Access Controller

By default, the Access Controller has the following IP address: 192.168.1.99.
You can manage and configure the FortiGte by establishing an SSH connection or by opening the following URL: http://192.168.1.99 via a web browser and logging in as the admin user, without any password.

Adding the RADIUS server

You can use the following script (note: the shared secret is hidden here)

config user radius
    edit "RADIUS_CLOUD4WI"
        set server "54.247.117.188"
        set secret ENC <SHARED SECRET HIDDEN HERE>
        set radius-coa enable
        set acct-all-servers enable
        set secondary-server "79.125.111.180"
        set secondary-secret ENC <SHARED SECRET HIDDEN HERE>
        config accounting-server
            edit 1
                set status enable
                set server "54.247.117.188"
                set secret ENC <SHARED SECRET HIDDEN HERE>
            edit 2
                set status enable
                set server "79.125.111.180"
                set secret ENC <SHARED SECRET HIDDEN HERE>
            next
        end
    next
end



Then, go to User & Device > User > User Groups.

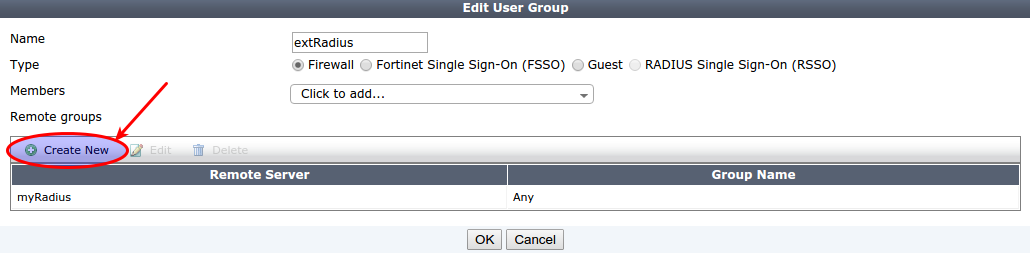

Define a firewall user group with the RADIUS server as its only member. Click Create New button, enter a Name for the rule (e.g. "extRadius"), and select Firewall as Type option.


Under Remote groups click Create New and under Remote Server choose the radius server previously created ("myRadius" in the example). Click OK to Save.




Enable HTTPS authentication and Radius Accounting

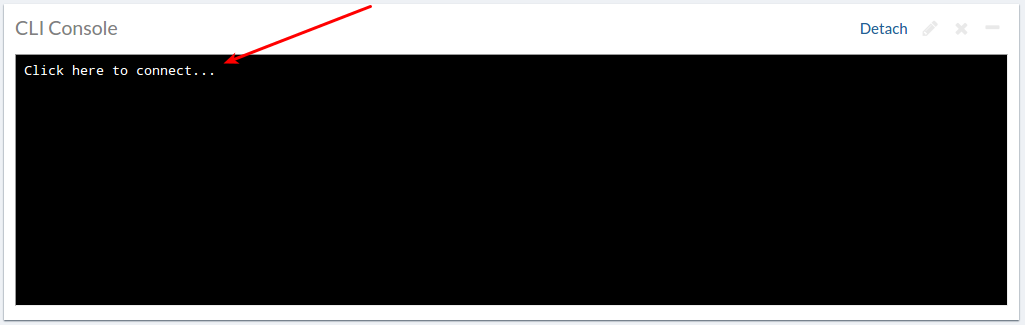

Go to Dashboard. Use the CLI console to enable HTTPS for authentication, so that user credentials are communicated securely.


Launch the following commands:

config user settings
set auth-secure-http enable
end




Create the WiFi network

Go to WiFi Controller > WiFi Network > SSID to create the WiFi SSID.

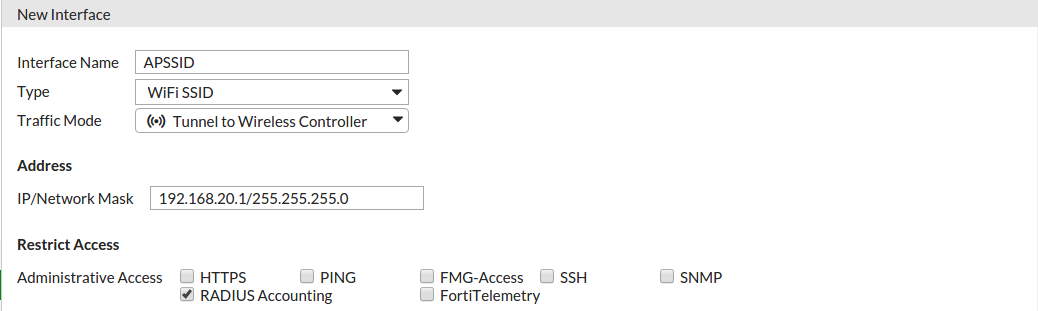

Enter the following:

  • Interface Name: APSSID
  • Type: WiFi SSID
  • Traffic Mode: Tunnel to Wireless Controller
  • IP/Network Mask: 192.168.20.1 / 255.255.255.0
  • Restrict Access: RADIUS Accounting

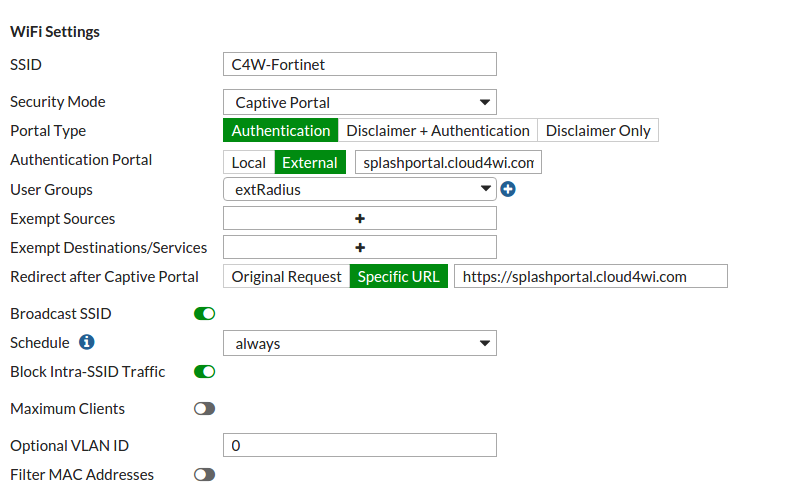

Configure external captive portal security.

  • SSID: C4W-Fortinet (or whatever you whish)
  • Security Mode: Captive Portal
  • Portal Type: Authentication
  • Authentication Portal: External  splashportal.cloud4wi.com (Do not include “http://” or “https://” in the captive portal URL.)
  • User Groups: extRadius
  • Redirect after Captive Portal (Specific URL enabled): https://splashportal.cloud4wi.com

Click OK to save.




Create policies for the captive portal and unauthenticated users

Go to Policy & Objects > Addresses.


Create an address for the captive portal.

  • Name: ecp
  • Type: IP/Netmask
  • Subnet / IP Range: 54.247.177.188
  • Interface: wan1 (your WAN connection)

Click OK to save.

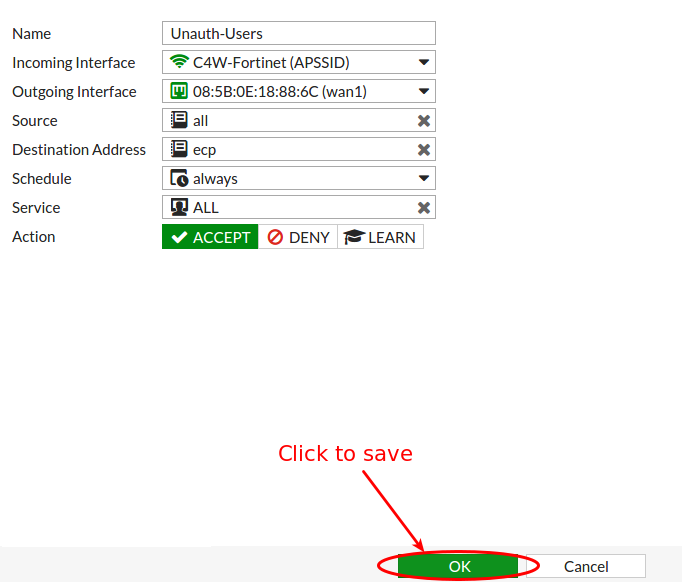

Go to Policy & Objects > Policy > IPv4. Create a security policy for unauthenticated users that allows access only to the captive portal.

  • Name: Unauth-Users
  • Incoming Interface: C4W-Fortinet (APSSID)
  • Outgoing Interface: wan1 (your WAN connection)
  • Source: all
  • Destination Address: ecp
  • Schedule: always
  • Service: ALL
  • Action: ACCEPT
  • Enable this policy: Enabled

Click OK.




In the CLI Console, enable bypass of the captive portal so that the user can make the initial contact with the external server.
Launch the following commands:

config firewall policy
edit <policy_id>
set captive-portal-exempt enable
end

Obtain <policy_id> from ID column of the policy list (Policy & Objects > Policy > IPv4).



Create your Internet access security policy

Go to Policy & Objects > Policy > Addresses.

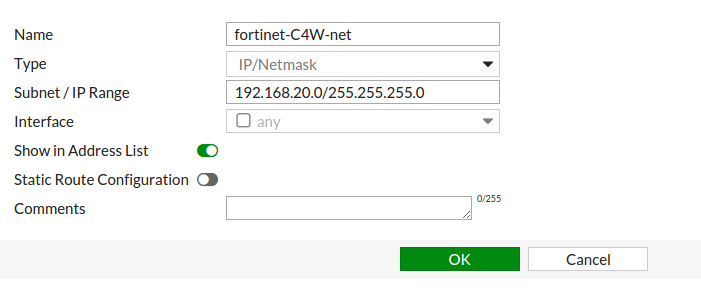

Create a policy for the SSID created previously.

Name: fortinet-C4W-net
Type: IP/Netmask
Subnet / IP Range: 192.168.20.0 / 255.255.255.0
Interface: any

Click OK to save.

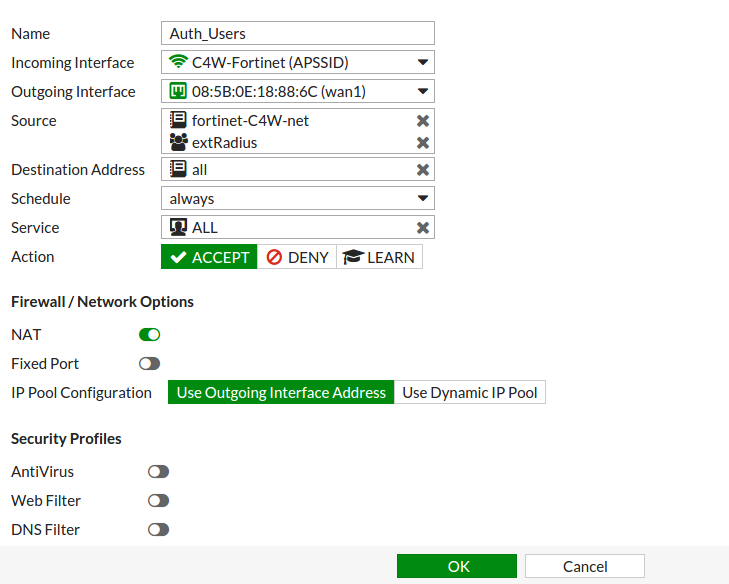

Go to Policy & Objects > Policy > IPv4. Create a policy to allow authenticated users access to the Internet.

  • Name: Auth_Users
  • Incoming Interface: C4W-Fortinet
  • Outgoing Interface: wan1
  • Source: fortinet-C4W-net
    extRadius
  • Destination Address: all
  • Schedule: always
  • Service: ALL
  • Action: ACCEPT

Leave others parameters as default.

Click OK to save.




Connect and authorize the FortiAP

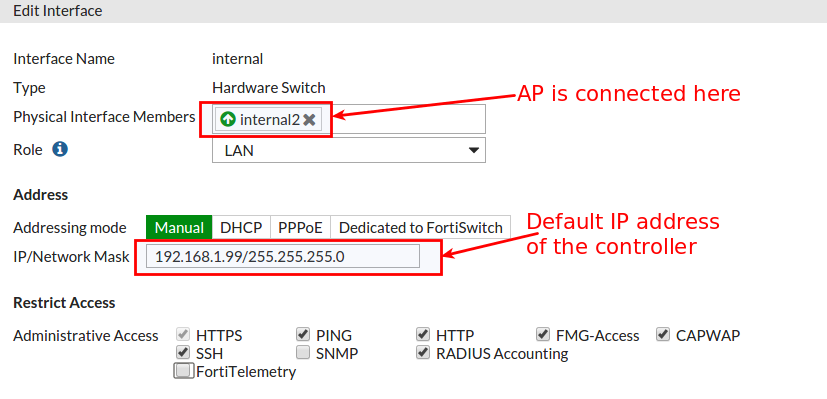

Go to System > Network > Interface. Edit an unused interface, making it Dedicated to Extension Device. Connect the FortiAP to this interface and apply power. Go to WiFi Controller > Managed Devices > Managed FortiAPs.


Select and authorize the FortiAP.

  • Physical Interface Members: AP iface
  • Role: LAN
  • Admin Access: HTTPS, HTTP, FMG-Access, CAPWAP, SSH, RADIUS Accounting

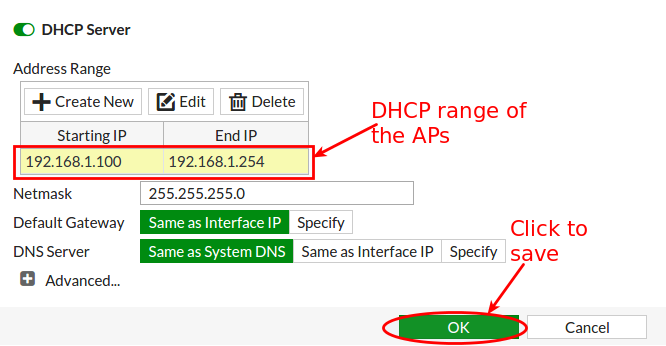

  • DHCP Server: enabled
  • Starting IP: 192.168.1.100
  • End IP: 192.168.1.254
  • Netmask: 255.255.255.0

Click OK to save.


Go to WiFi Controller > WiFi Network > FortiAP Profiles. Edit the default profile for your FortiAP model. Enable your SSID for each radio.

  • Radio Mode: Access Point
  • Select SSIDs: C4W-Fortinet

Click OK to save.




Enter your policy to enable Social Login

To enable the Social Login it’s mandatory to configure some rules, on the Controller, to open some specific domain on the walled garden. In this guide will enable LinkedIn Login to give you an example.
For the complete list of the websites/domain please check the next paragraph (Websites/domain list for social login).

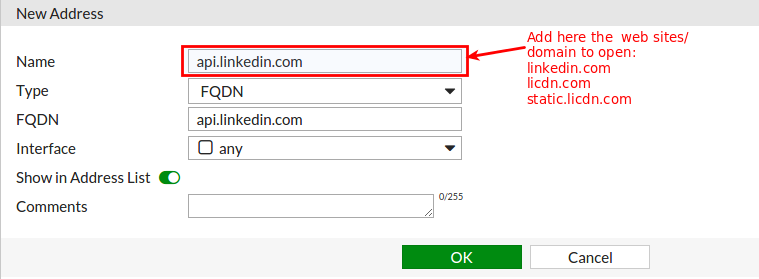

Go to Policy & Objects > Objects > Addresses. Create an address for social login.

  • Name: api.linkedin.com
  • Type: FQDN
  • FQDN: api.linkedin.com
  • Interface: any

Click OK to save.

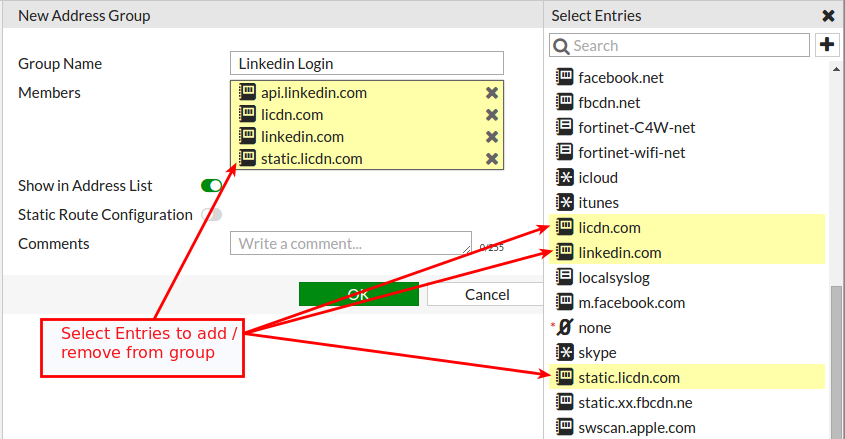

To group address previously created, add a new Address Group.

  • Name: Linkedin Login
  • Members: api.linkedin.com,
    licdn.com,
    linkedin.com
    static.licdn.com

Click OK to save.




Go to Policy & Objects > Policy > IPv4.

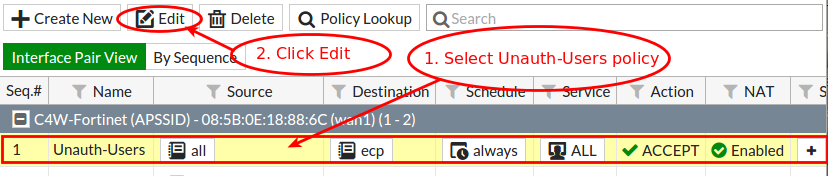

Edit the Unauth-Users Policy previously created and add Linkedin Address Group.

  • Destination Address: ecp, Linkedin

Click OK to save.




Walled garden

Based on the example above, you can create specific access-rules in order to allow unauthenticated users to enter specific domains.
When configuring the walled garden, you are required to add the following domain: cloud4wi.com. This allows you a proper redirection to the Splash Page and enables the access to the CDN.
For some specific use cases, you may be interested in the following articles:

Entering the device details into the Admin Panel

For Fortinet devices, Cloud4Wi requires only the MAC address and the Identifier field is not required.



Parameters for the Solution

Add the radius server

Configure the radius server

  • Name: myRadius
  • Primary Server IP/Name: 54.247.117.188
  • Primary Server Secret: (it will be communicated by Cloud4Wi)
  • Secondary Server IP/Name: 79.125.111.180
  • Secondary Server Secret: (it will be communicated by Cloud4Wi)

Define a firewall user group and link to radius

  • Name: extRadius
  • Type: Firewall
  • Groups: myRadius



Enable HTTPS authentication

Execute the following commands by CLI Console to enable HTTPS Authentication

config user settings
set auth-secure-http enable
end



Create the WiFi network

Create a new interface

  • Interface Name: APSSID
  • Type: WiFi SSID
  • Traffic Mode: Tunnel to Wireless Controller
  • IP/Network Mask: 192.168.20.1 / 255.255.255.0
  • Restrict Access: RADIUS Accounting

WiFi Settings

  • SSID: C4W-Fortinet
  • Security Mode: Captive Portal
  • Portal Type: Authentication
  • Authentication Portal (External enabled): splashportal.cloud4wi.com
  • User Groups: extRadius
  • Redirect after Captive Portal (Specific URL enabled): https://splashportal.cloud4wi.com



Create policies for captive portal and unauthenticated users

Captive portal policy

  • Name: ecp
  • Type: IP/Netmask
  • Subnet / IP Range: 54.247.177.188
  • Interface: wan1

Unauthenticated users policy

  • Name: Unauth-Users
  • Incoming Interface: C4W-Fortinet (APSSID)
  • Outgoing Interface: wan1
  • Source: all
  • Destination Address: ecp
  • Schedule: always
  • Service: ALL
  • Action: ACCEPT

Enable bypass of the captive portal (by CLI)

config firewall policy
edit <policy_id>
set captive-portal-exempt enable
end



Create your Internet access security policy

Policy for SSID network created previously.

  • Name: fortinet-C4W-net
  • Type: IP/Netmask
  • Subnet / IP Range: 192.168.20.0 / 255.255.255.0
  • Interface: any

Policy to allow authenticated users to go to the Internet

  • Name: Auth_Users
  • Incoming Interface: C4W-Fortinet(APSSID)
  • Outgoing Interface: wan1
  • Source: fortinet-C4W-net
    extRadius
  • Destination Address: all
  • Schedule: always
  • Service: ALL
  • Action: ACCEPT



Connect and authorize the FortiAP

Configure APs Profile

  • Role: LAN
  • Admin Access: HTTPS, HTTP, FMG-Access, CAPWAP, SSH, RADIUS Accounting
  • DHCP Server: enabled
  • Starting IP: 192.168.1.100
  • End IP: 192.168.1.254
  • Netmask: 255.255.255.0

Enable Radio and associate to an SSID

  • Radio Mode: Access Point
  • Select SSIDs: C4W-Fortinet



Enter policy to enable Social Login (LinkedIn Login)

LinkedIn Login (Group Address)

  • Name: Linkedin Login
  • Members: api.linkedin.com,
    licdn.com,
    linkedin.com
    static.licdn.com
