Purpose
This guide shows how to configure a Teltonika Networks Automotive Router RUT850 or RUT955 to use it with Cloud4Wi.
Please note that the images contained in this article may contain outdated configuration data. You must check the data contained in the article "Parameters for the Solution" at the bottom of the page as they are certainly up to date.
Prerequisites
The configuration procedure has been performed and tested on a router model (RUT850) running Firmware version (R_03.00.330). Before integrating the router with Cloud4Wi, it is necessary that the access point is connected to the Internet through a SIM card (check the manual of the Automotive Router).
Setup

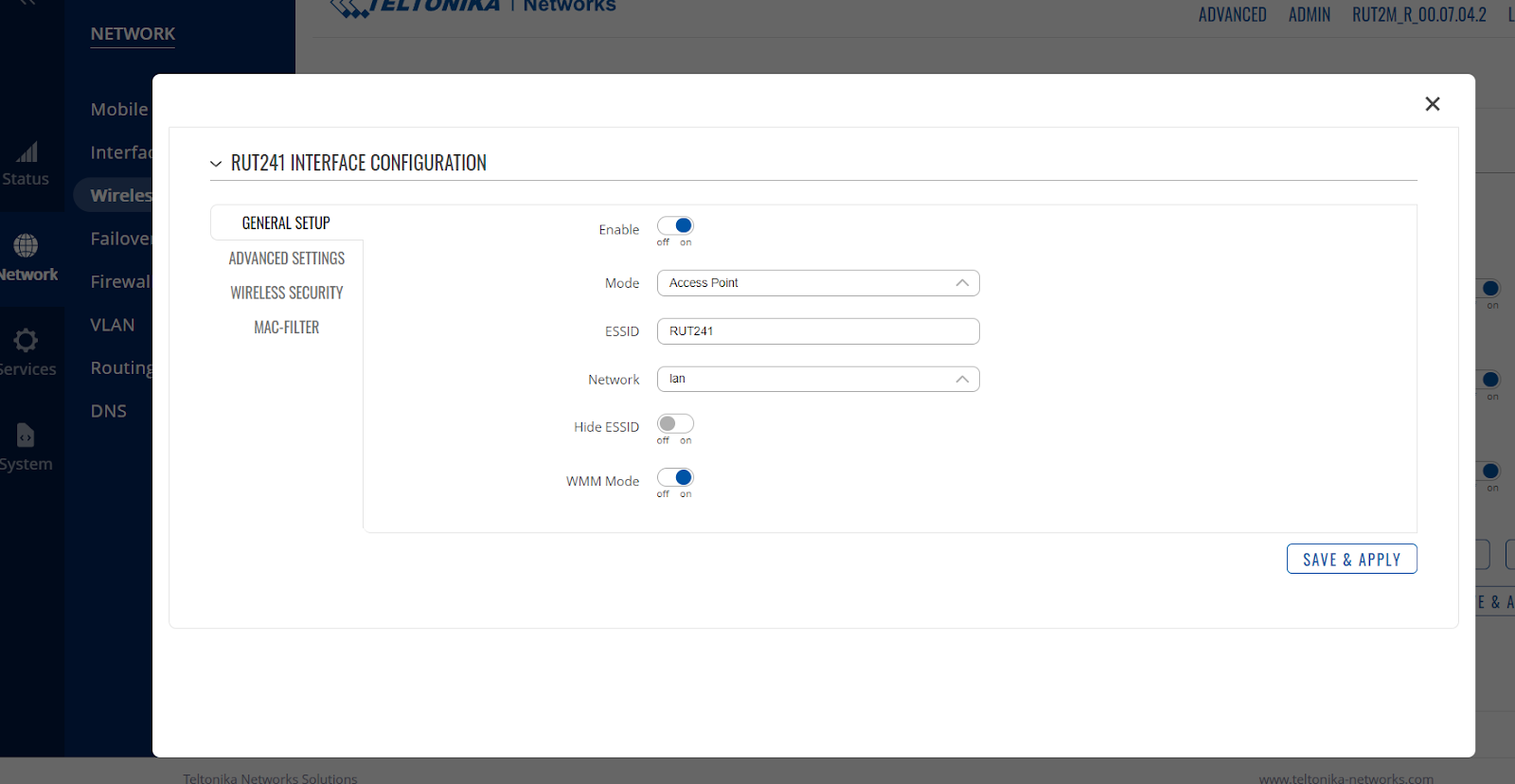

Under Network > Wireless, create a new Wi-Fi network without a password.

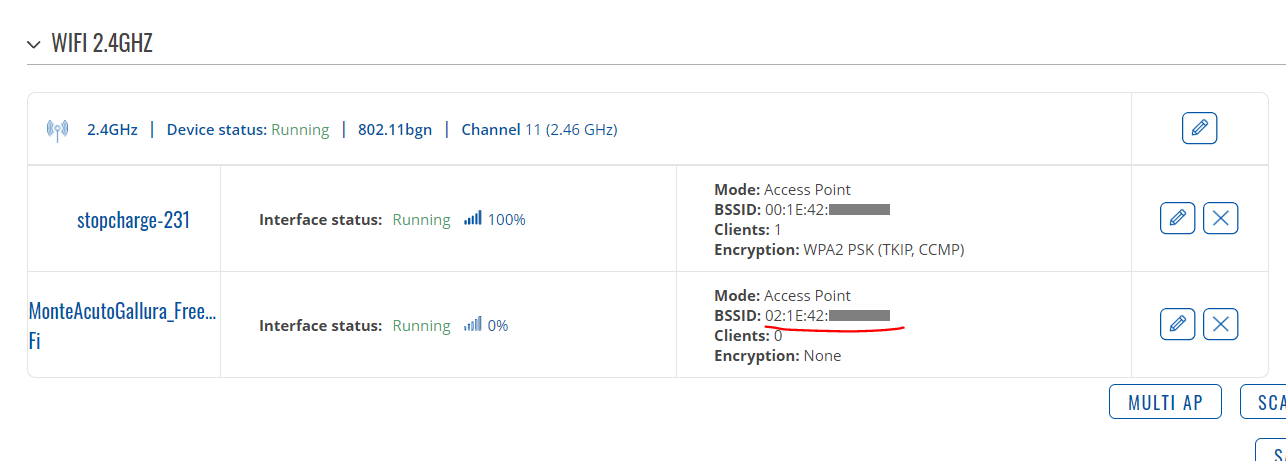

After that, wait until the Wi-Fi interfaces are restarted by the system. Then note down the BSSID value, as this is the MAC address of the access point that you will need to enter later in the Admin Panel of Cloud4Wi.
In Services > Package Manager, search for "hotspot" in the "search" field, then click on the "+" button on the right and click "CONFIRM" to install the package.
In Services > Hotspot > General, select from the "INTERFACE" drop-down menu the Wi-Fi network previously created, and press the "ADD" button.
In General settings, select from the Configuration Profile menu the "Cloud4wi" item, set Enable to ON, then select Success page → Original URL.

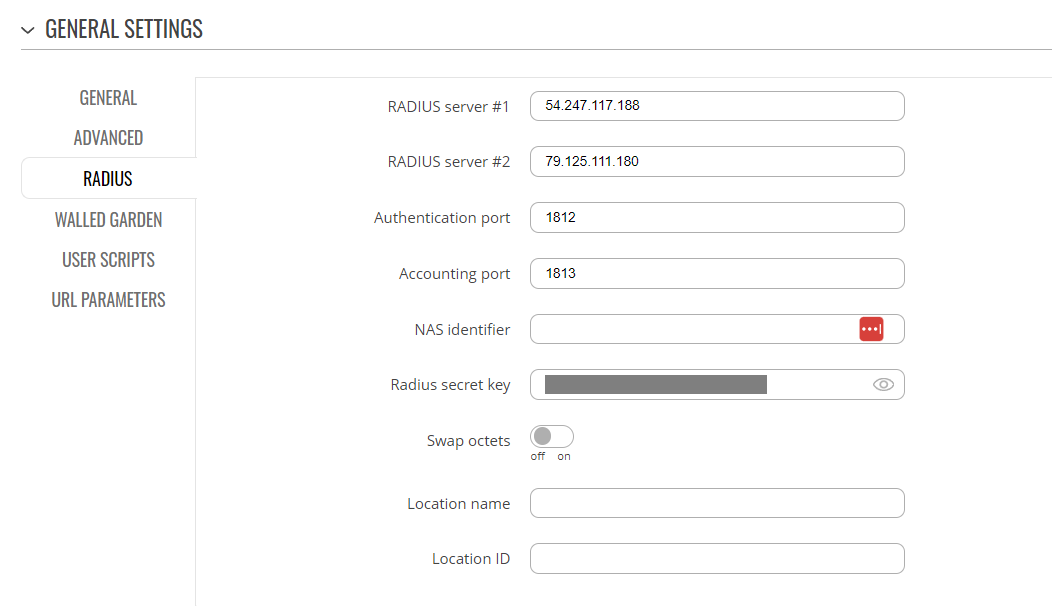

In the Radius menu, under "Radius secret key", enter the RADIUS secret you have received by Cloud4Wi.

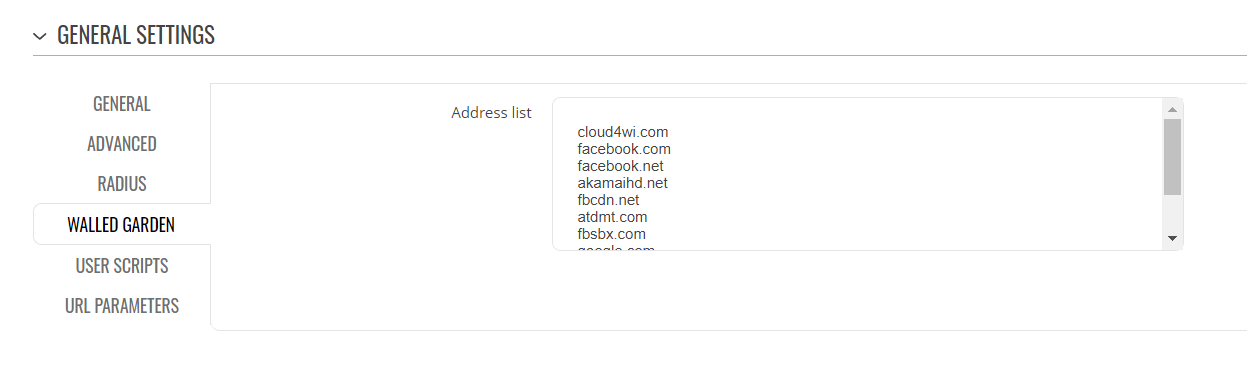

In the Walled Garden menu, enter your walled garden list. Here, you have to include the "cloud4wi.com" entry.
You may need to add other entries depending on your purposes. In that case, you might be interested in the following articles:
- Walled garden for the Social Login (websites/domains to open)
- Walled garden for PayPal feature (websites/domains to open)
Finally, click on the "SAVE & APPLY" to enable your configuration.
Parameters for the Solution
The following values are needed to integrate the device with the solution:
- Configuration profile: Cloud4wi
- Authentication mode: Radius
- Landing page: External
- Landing page address: https://splashportal.cloud4wi.
com/?vendor=teltonika - Success page: Original URL
- RADIUS server #1: 54.247.117.188 (Primary Server)
- RADIUS server #2: 79.125.111.180 (Secondary Server)
- Authentication port: 1812
- Accounting port: 1813
- Radius secret key: (Cloud4Wi will communicate it)
