Purpose

This guide explains how to configure a Cradlepoint access point for Cloud4Wi via NetCloud.

Please note that the images in this article may contain outdated configuration data. Therefore, check the "Parameters for the Solution" section at the bottom of the page, as it contains the most up-to-date information.

Prerequisites

To successfully integrate a Cradlepoint access point with the solution, ensure that:

• The device is connected to the Internet.

• WAN and LAN interfaces are properly configured.

Create SSID

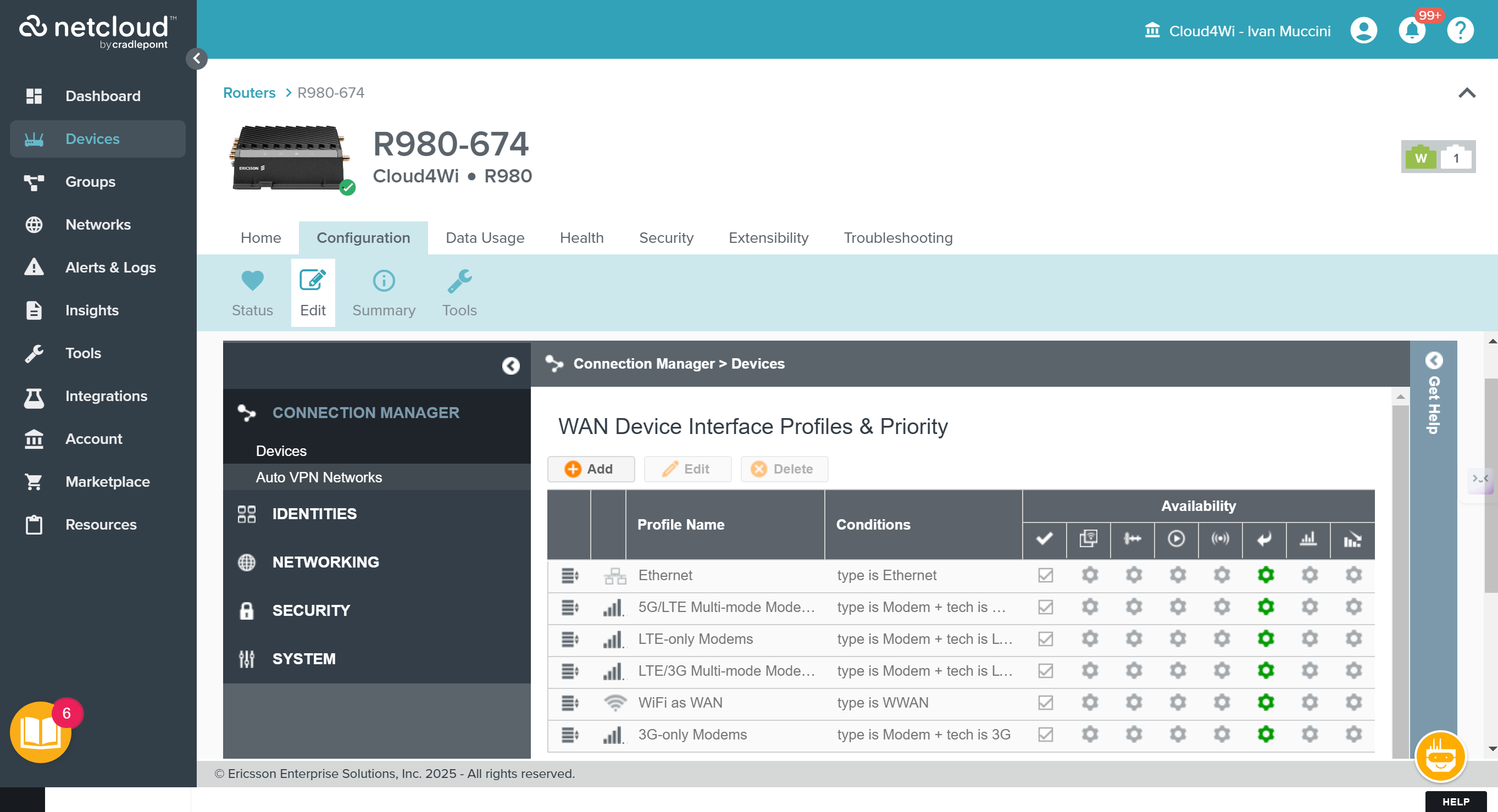

Once logged into your NetCloud account, select the router you need to configure and go to the "Configuration" tab.

Example:

• Log into your netcloud account using your credentials.

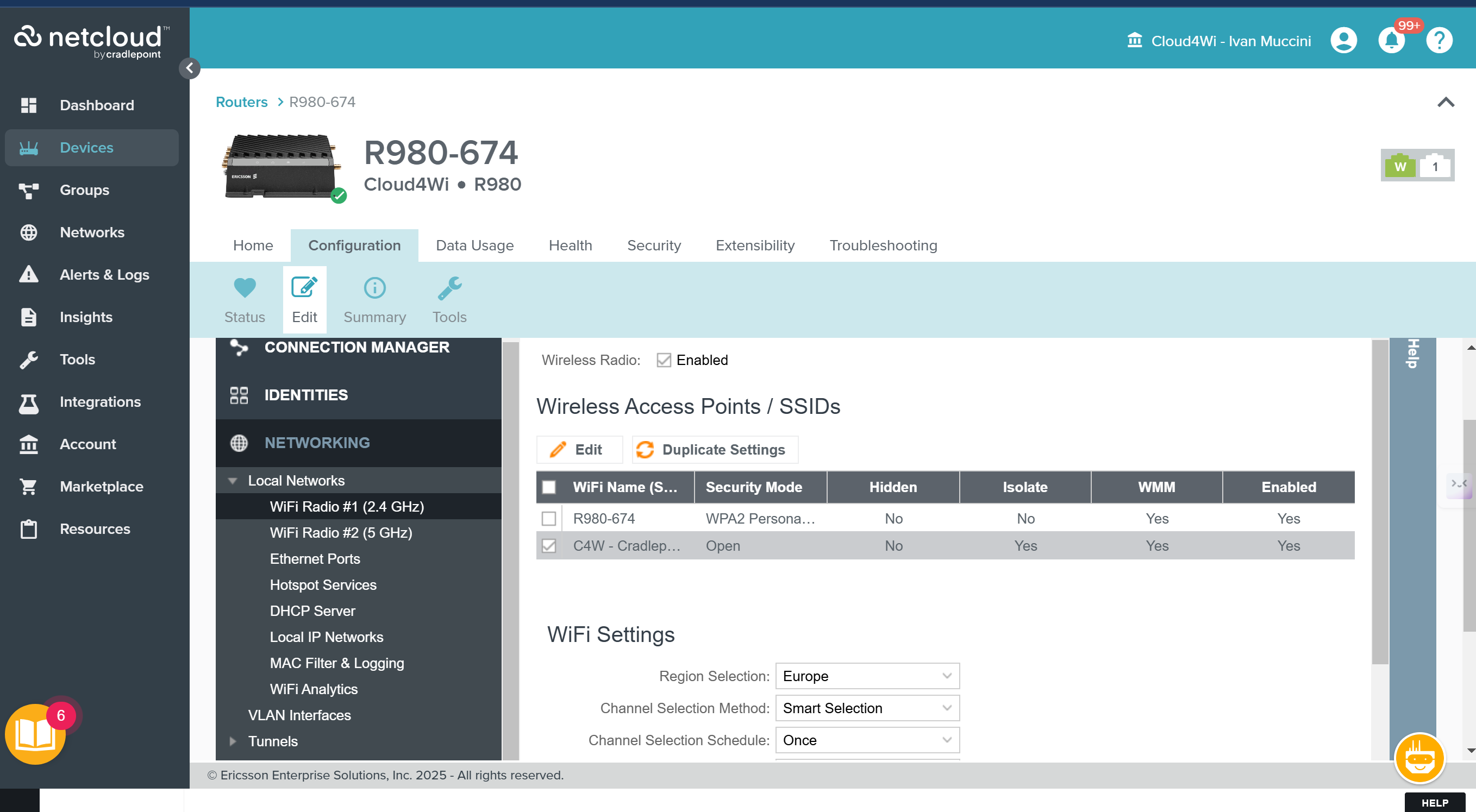

• Navigate to Networking > Local Network and configure the SSID for each WiFi radio.

• Create and edit the SSID:

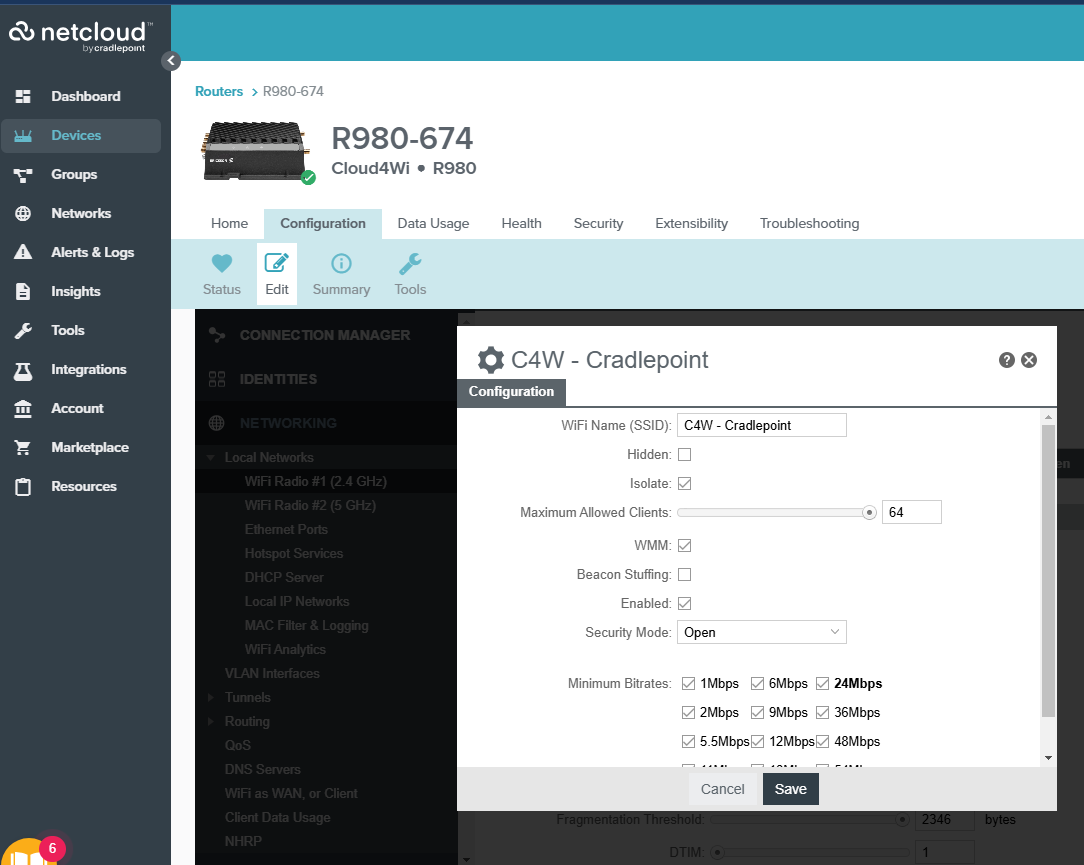

• From here, you can rename the SSID and set the Security Mode as Open. Save this setting by clicking on Submit.



Configure the Hotspot Local network

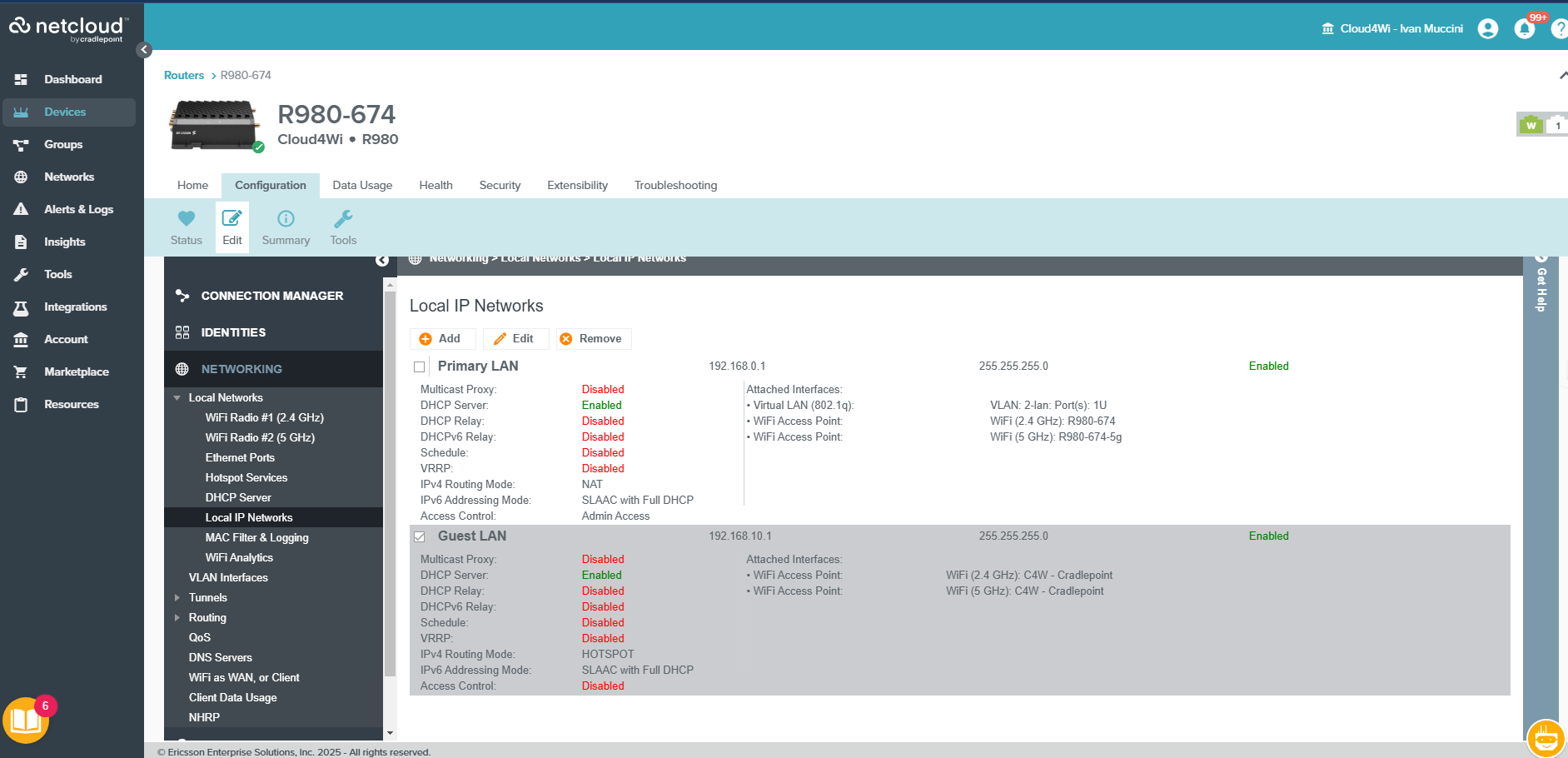

• Navigate to Networking / Local IP Networks and modify the existing Guest LAN o create a new one:



  Please review the following sections:

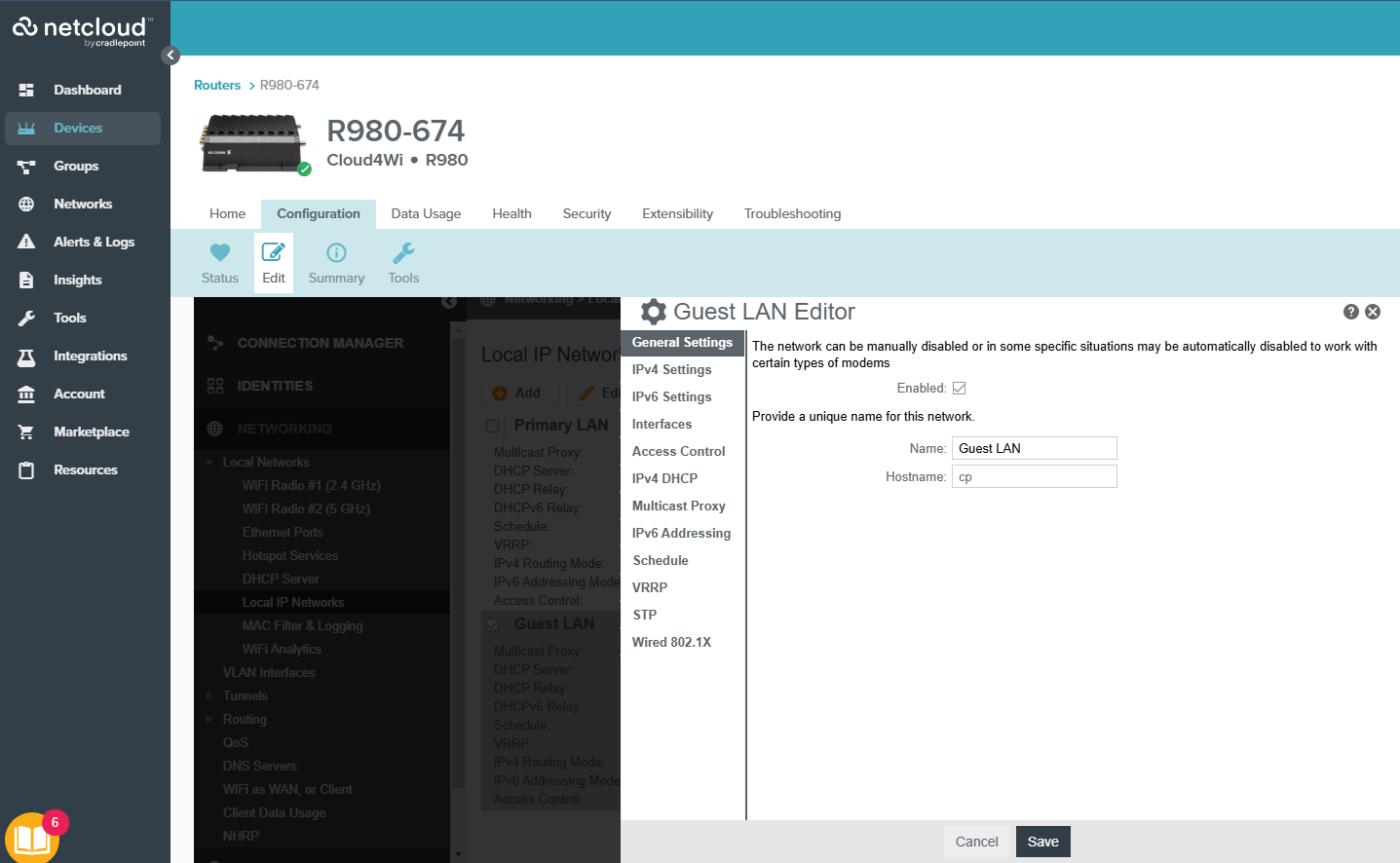

• • General Settings: Assign a name for easy identification.

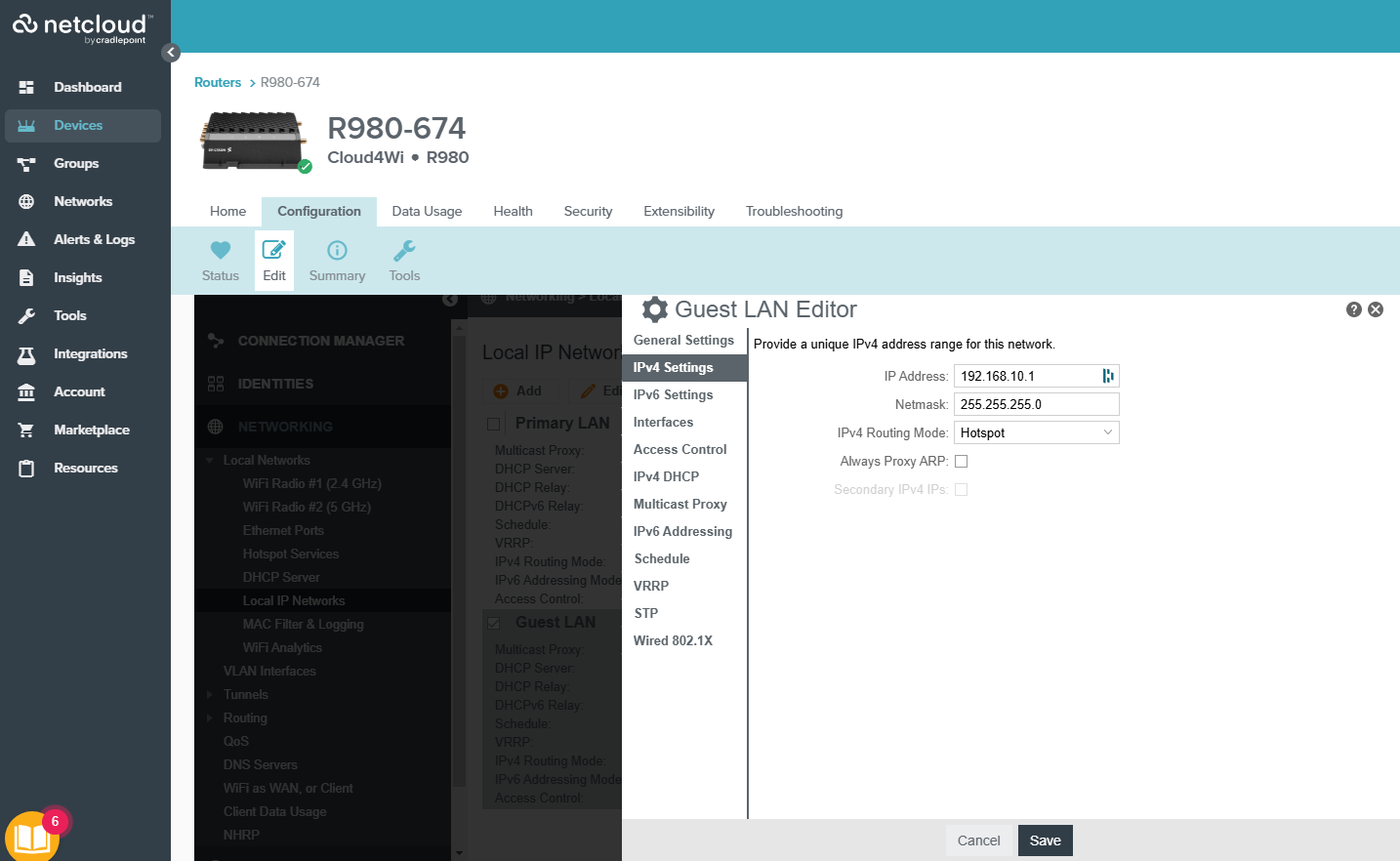

  • IPv4 Settings: Set the IP address and netmask for your network, then select "Hotspot" from the drop-down menu for IP routing mode.

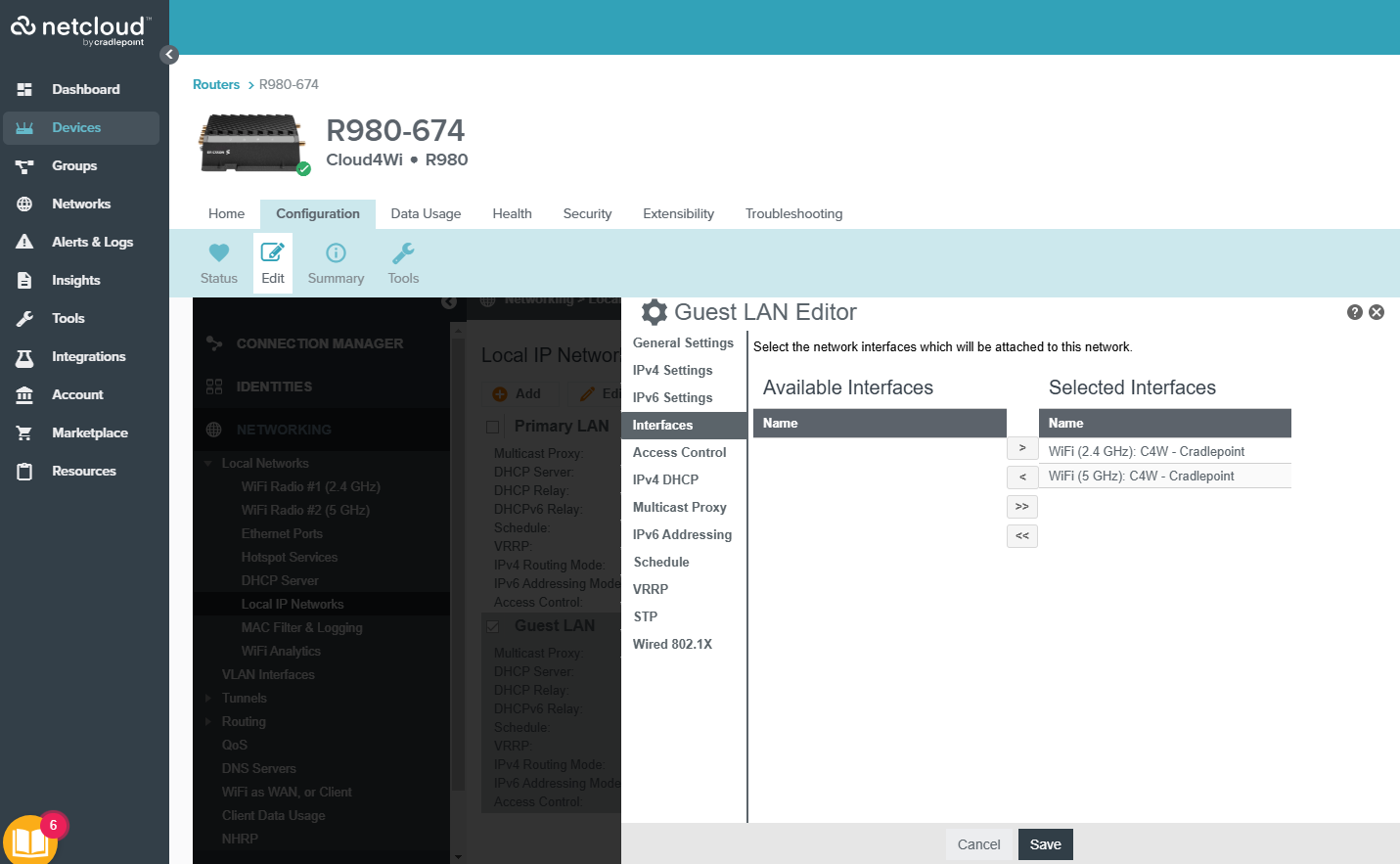

  • Interfaces: From here you can add the SSID you created earlier as available for hotspot mode.




  • Make any additional necessary changes for your network and click "Save and Commit" to apply all settings.



    Create Hotspot Service

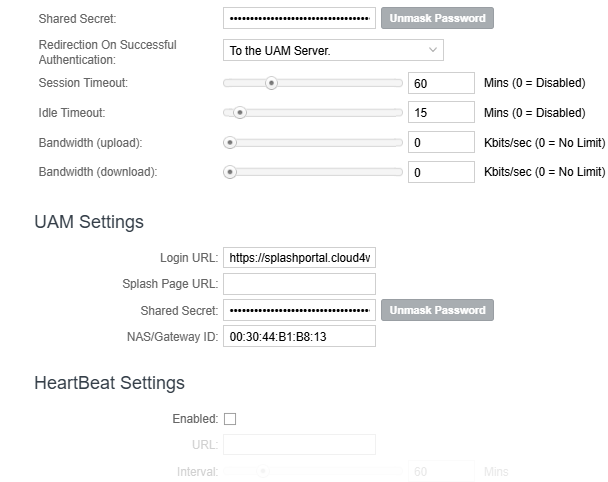

    Navigate Networking / Local Networks /Hotspot services and configure as following:




  • Click Apply to save these settings. Scroll down to Allowed hosts/domains prior to Authentication and enter the domain names as required. Cradlepoint supports “ *.domain.com” format for walled garden entries.
  • Add *.cloud4wi.com


Walled garden

As already mentioned, it is possible to set this list in the Allowed hosts/domains prior to Authentication section.
You can learn more about that by reading the following articles:

• Walled garden for the Social Login (websites/domains to open)
• Walled garden for PayPal feature (websites/domains to open)

Entering the device details into the Cloud4Wi Dashboard

As already mentioned, the NAS ID entered in the local AP interface or the Cradlepoint, must match the value entered as Identifier in the Cloud4Wi Dashboard.

In order to add a new access point to the system, please see How to add an access point.

If you are looking for more general information about how to configure your Access point in Cloud4Wi please read the Quick-start guide.

Parameters for the Solution

These are the parameters for the RADIUS server details. If these parameters change in the future, we will take care of informing you about new values.

RADIUS Settings
Server Address 1: 54.247.117.188
Server Address 2: 79.125.111.180
Authentication Port: 1812
Accounting Port: 1813
Redirection On Successful Authentication: To the UAM server
Shared Secret / Confirm Secret: (it will be communicated by Cloud4Wi)

UAM Settings
Login URL: https://splashportal.cloud4wi.com/?vendor=cradlepoint
