Purpose
In this guide, we will see how to configure an Aruba Networks device in the "Controller - AP" architecture for Cloud4Wi.
This guide applies to the Solution for the Aruba Operating System version 8 or later.
Importante note: To avoid security and authentication issues, it is necessary to upload a trusted certificate into the controller, once done please share with Support Team your custom FQDN. (With Aruba Mobility Controller the intermediate and root cert must be combined together into the same file so that the trust chain is complete)
WLAN Creation
-
Start by logging into your Aruba Controller web interface.
Step 1 - WLAN

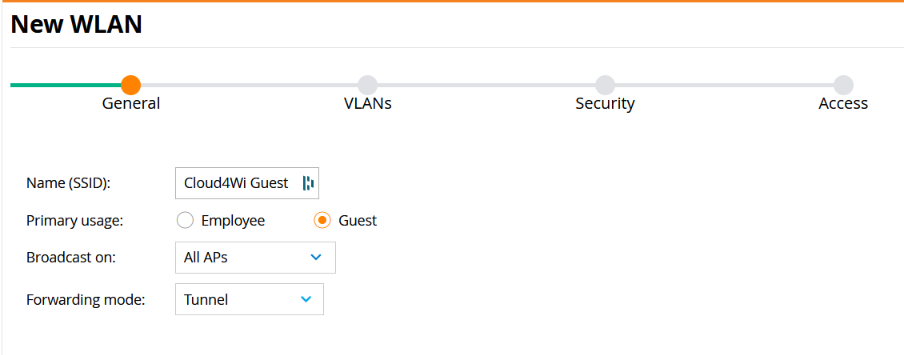

Click Configuration > WLANs on the left and then click the + sign to add a new WLAN. Configure with:
Name (SSID): Cloud4Wi Guest (or whatever you wish)
Primary Usage: Guest
Forwarding Mode: Tunnel
Click Next and configure with:
VLAN: 1 (or whatever you use)
Click Next and configure with:

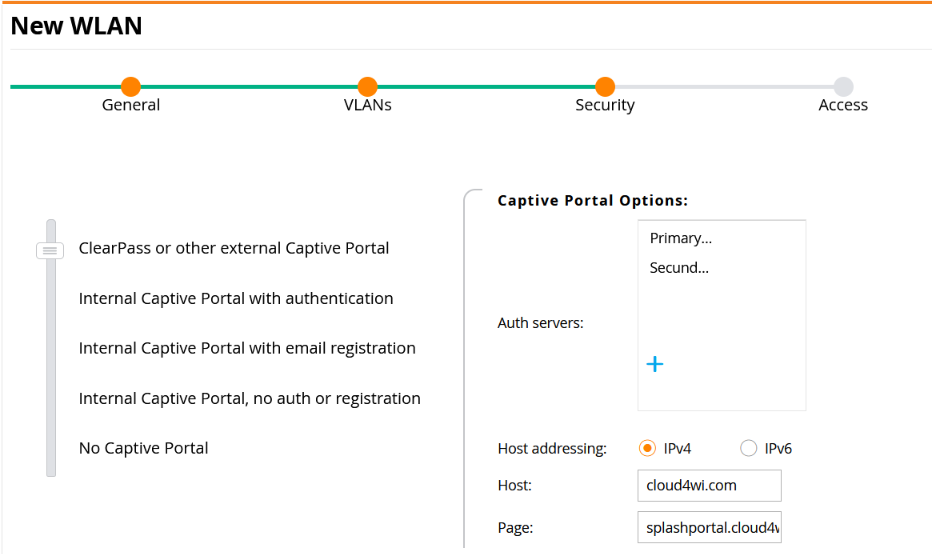

Captive Portal Type: ClearPass or other external Captive Portal

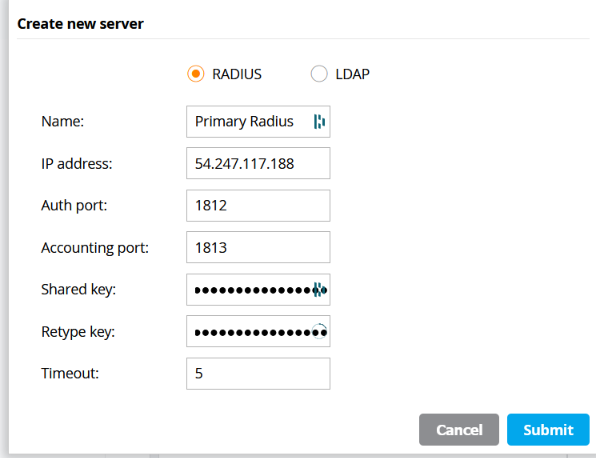

Under Auth servers click + then + again to create a new server. Configure with:
Server type: RADIUS
Name: Primary Radius
IP Address: 54.247.117.188
Auth port: 1812
Accounting port: 1813
Shared key: *insert radius_secret here*
Retype key: as above
Timeout: 5

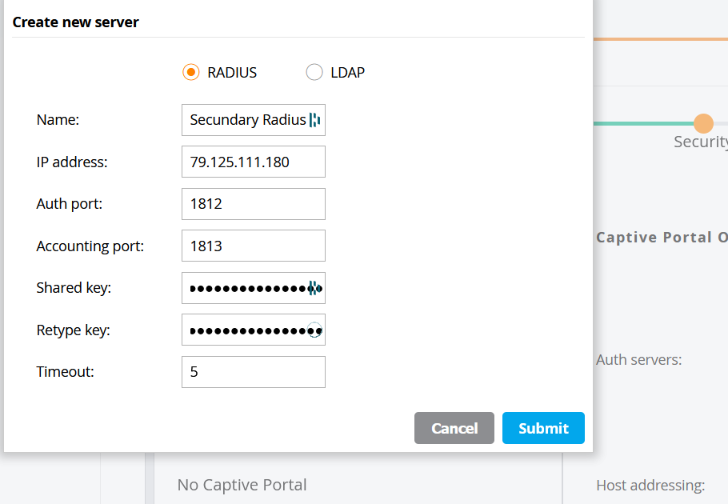

Click Submit and then + again. Configure with:
Server type: RADIUS
Name: Secondary Radius
IP Address: 79.125.111.180
Auth port: 1812
Accounting port: 1813
Shared key: *insert radius_secret here*
Retype key: as above
Timeout: 5
Click Submit and then configure the further options with:
Host addressing: IPv4
Host: cloud4wi.com
Page: https://splashportal.cloud4wi.com
Click Next and then Next again to complete the wizard.
Roles & Policies configuration

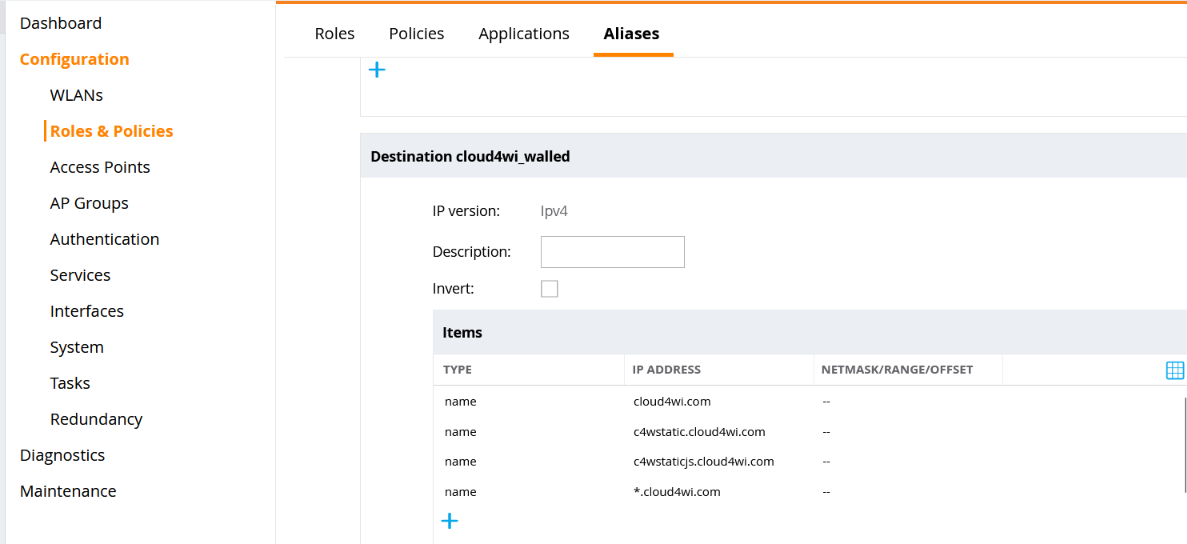

Next, click Roles & Policies on the left. Select the Aliases tab and click +. Configure with:
IP Version:IPv4
Name: cloud4wi_walled
Under Items click + and configure with:
Rule Type: Name
Domain Name: *.cloud4wi.com
Click + again and do the same for the following domains:
c4wstatic.cloud4wi.com
c4wstaticjs.cloud4wi.com
cloud4wi.com
Click Submit to save.
Authentication setup
L3 Authentication

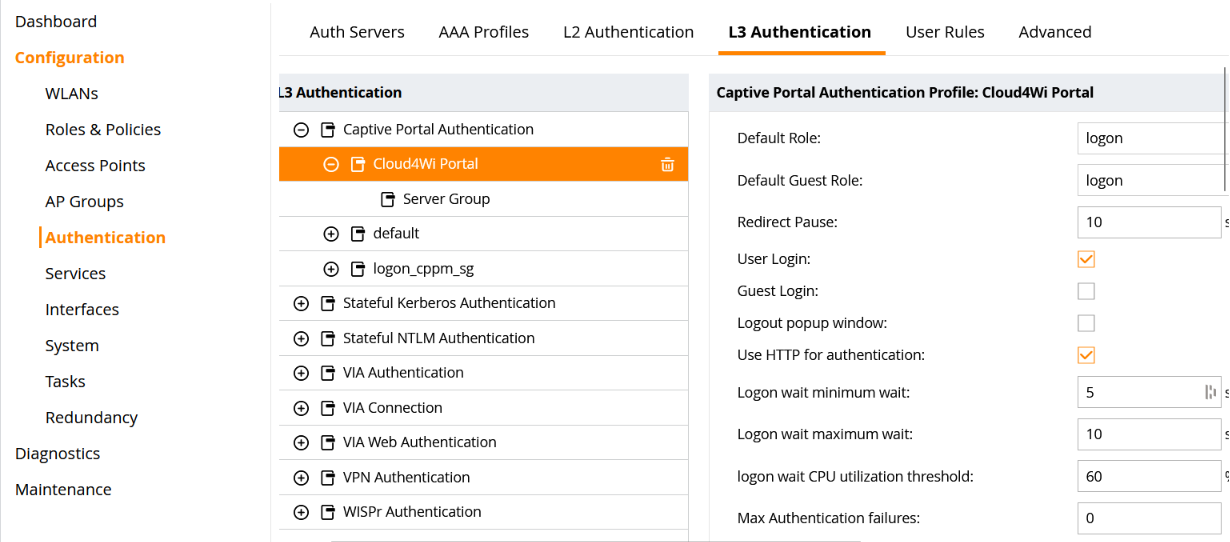

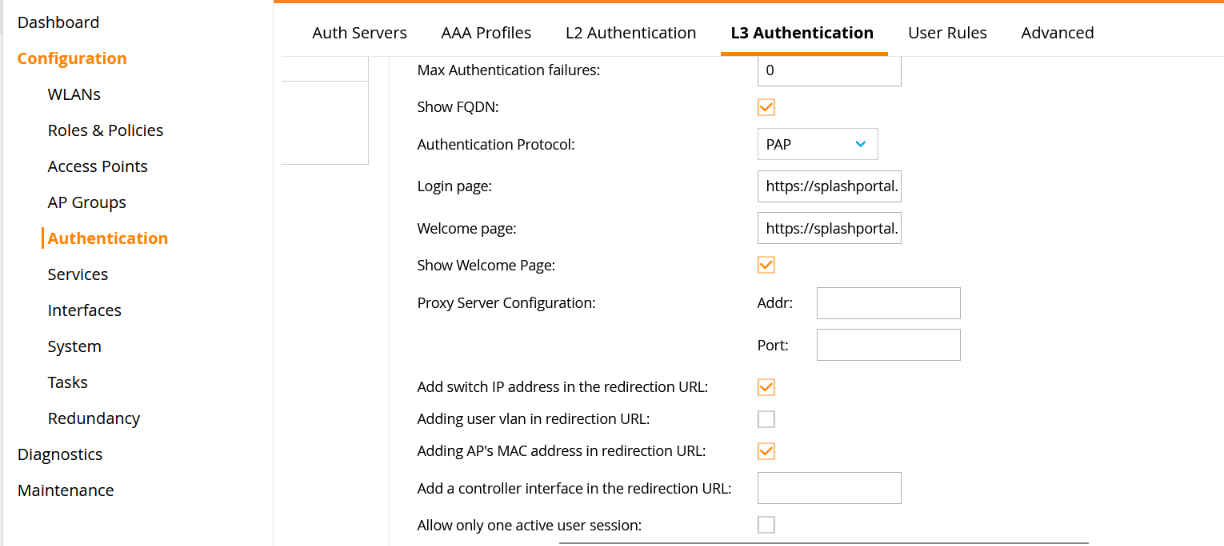

Next, click Authentication on the left. Select the L3 Authentication tab and then create the Cloud4Wi Portal Profile entry. Configure with:
Default Role: logon (or custom)
Default Guest Role: logon (or custom)
Redirect Pause: 10
User Login: Enabled
Guest Login: Disabled
Logout popup window: Disabled
Use HTTP for authentication: Enabled
Logon wait minimum wait: 5
Logon wait maximum wait: 10
Authentication Protocol: PAP
Login page: https://splashporal.cloud4wi.com
Welcome page: https://splashporal.cloud4wi.com
Show Welcome page: Enabled
Add switch IP in redirection URL: Enabled
Adding APs MAC address in redirection URL: Enabled

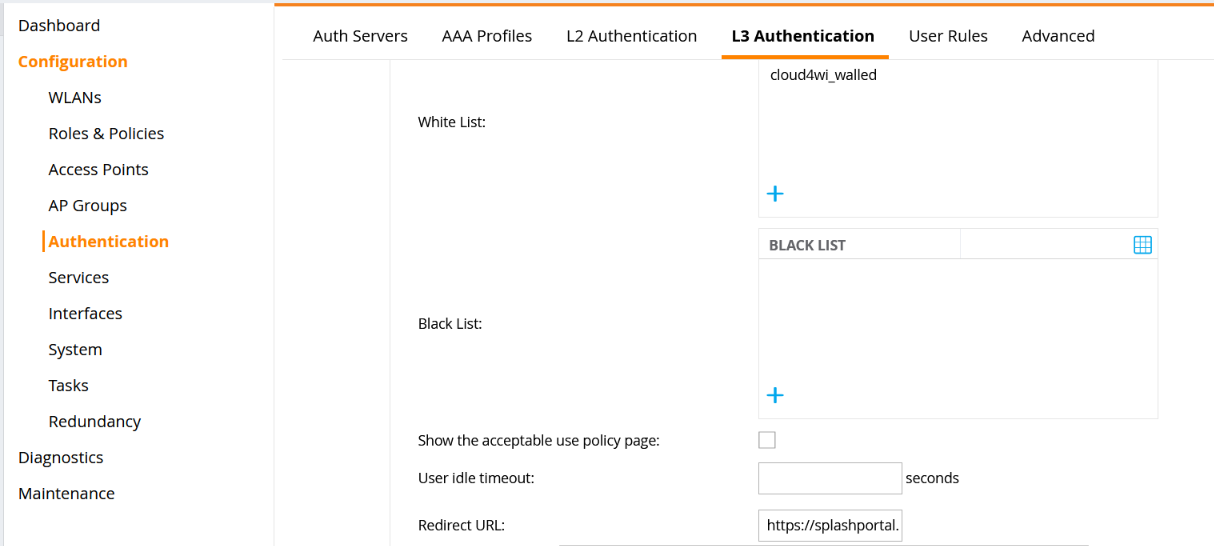

White List: Add cloud4wi_walled from the list
Redirect URL: https://splashporal.cloud4wi.com
Click Submit to save.
AAA Profiles

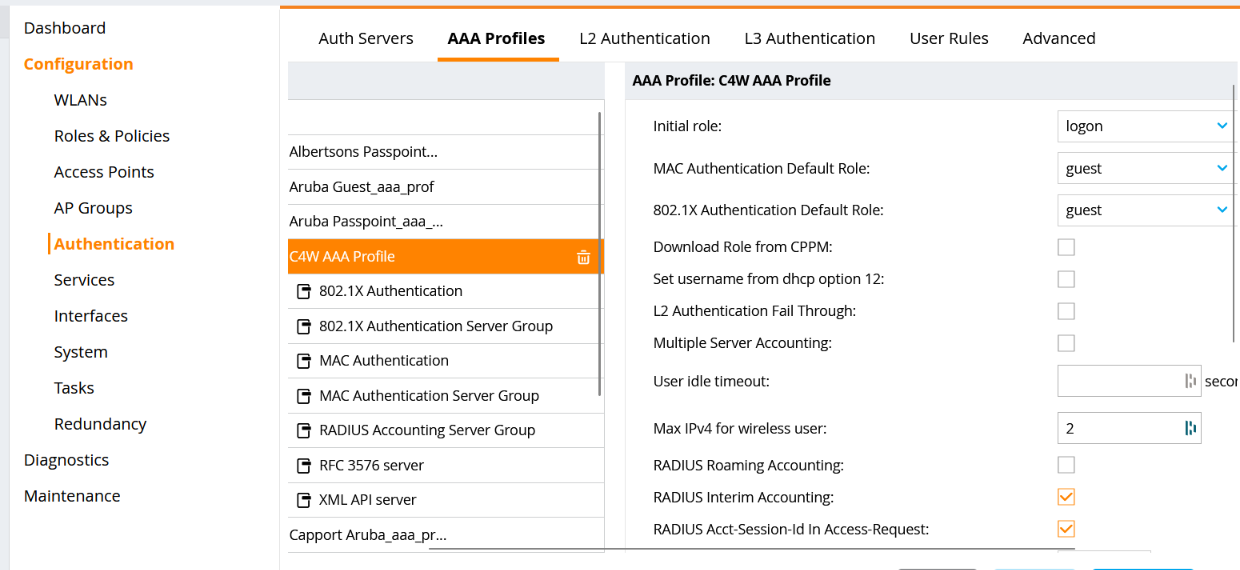

Next, select the AAA Profiles tab and create C4W AAA Profile. Configure with:
Initial role: logon
RADIUS Interim Accounting: Enabled

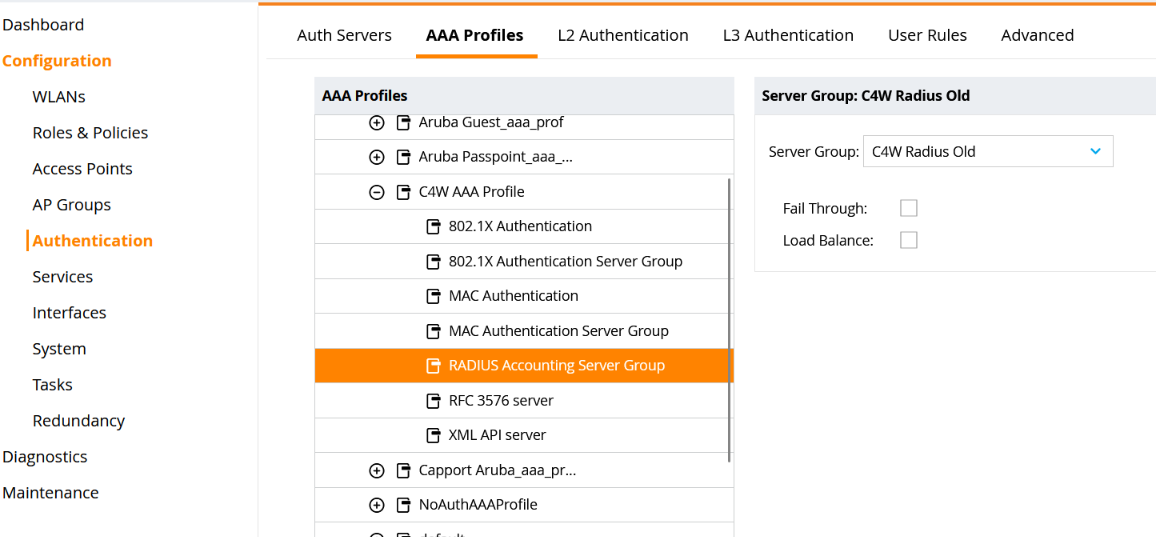

Click Submit to save. Next, click on the RADIUS Accounting Server Group and configure with:
RADIUS Accounting Server Group: C4W Radius

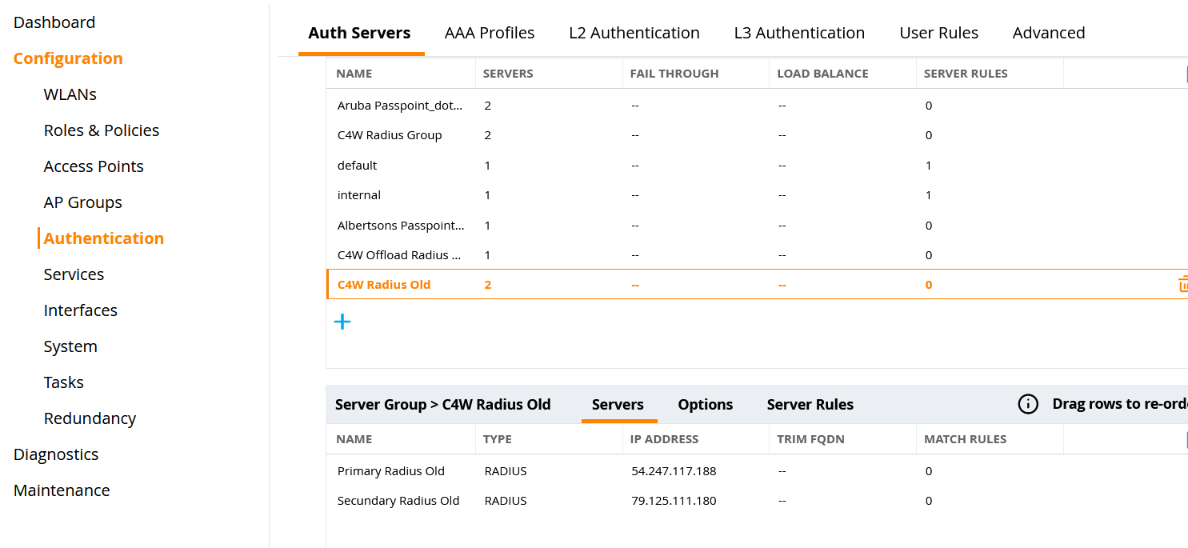

with the server group defined in Auth Servers tab:
Auth Servers
Click Submit to save. Next, select the Auth Servers tab and then All Servers > Primary Radius. Leave all settings as they are except:
Mode: Enabled
MAC address delimiter: None
Station ID Type: AP Name
Station ID Delimiter: Colon
Click Submit to save and then do the same for the Secondary Server server.
Finally, click Pending Changes at the top and apply changes.
Entering the device details into the Admin Panel
In order to integrate the access point with the Solution, it is necessary to enter its details into the Admin Panel.
To have further information on how to do that, please see How to add an access point. In the Admin Panel, a field called Identifier will be required by the web interface.
For Aruba Networks products it corresponds to the AP Name displayed in the Wireless > AP Installation > Provision page (please check the "Provisioning" paragraph above).
Please note that this value must be unique for all the devices entered in the Admin Panel. Otherwise, the access point will be not correctly integrated with the Solution.
Parameters for the Solution
The parameters indicated above for the Services > Hotspot page, are mandatory for the proper functioning. The necessary parameters to integrate the device with the Solution are the following:
Host: 54.247.117.188 (primary), 79.125.111.180 (secondary)
Key: (it will be communicated by Cloud4Wi)
Auth Port: 1812
Acct Port: 1813
Login page: https://splashportal.cloud4wi.com
Welcome page: https://splashportal.cloud4wi.com
Redirect URL: https://splashportal.cloud4wi.com
Please note that it is necessary to enter the Admin Portal URL exactly as it is written above.
If you enter the Admin Portal URL in different formats (e.g. https://splashportal.cloud4wi.com/c4wportal/mysplashportal), then the redirection will fail and the end-user will not be able to see the Splash Page.
